Product Overview

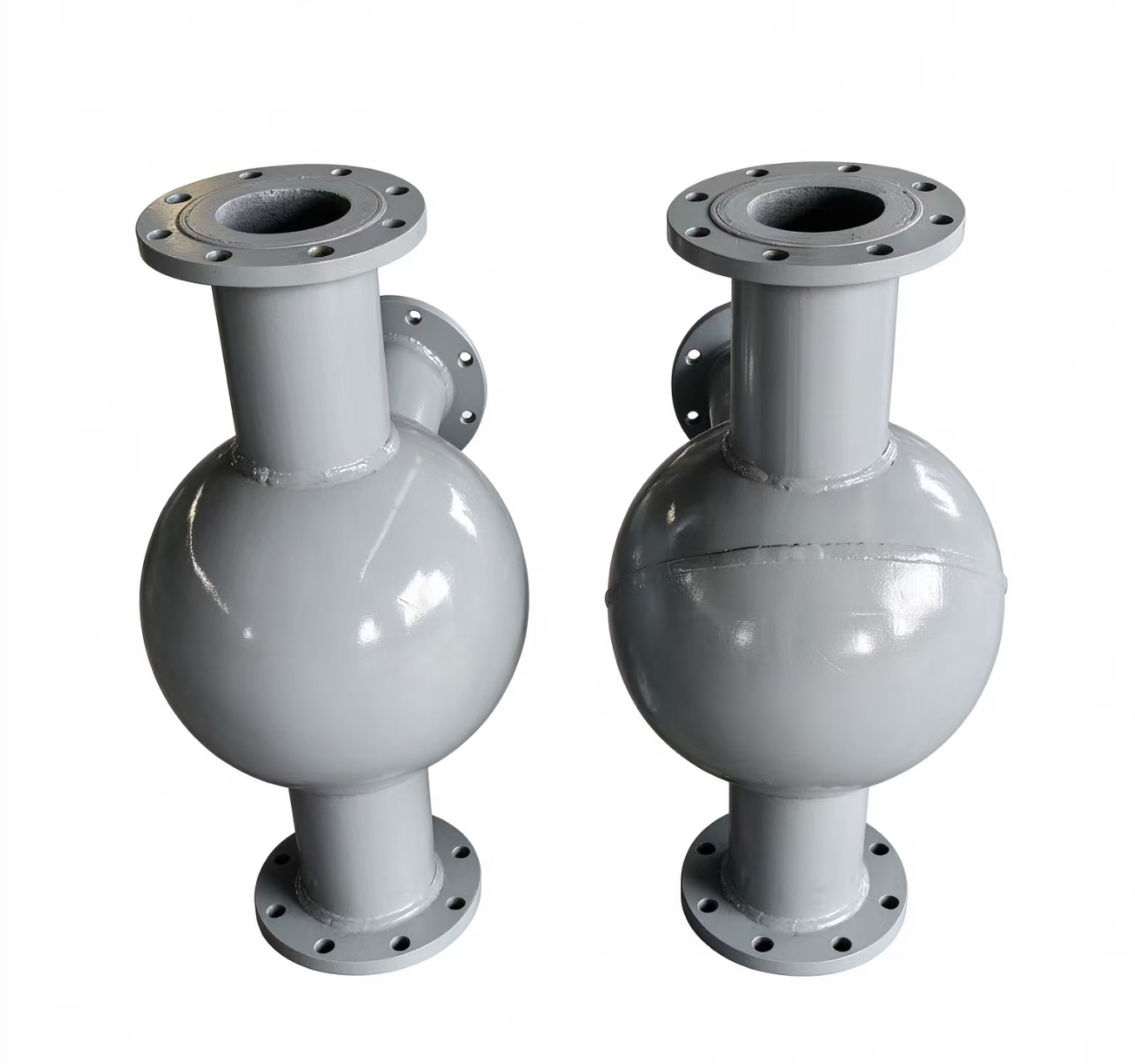

Ceramic lined wear-resistant spherical elbow adopts spherical flow channel design, lined with high-alumina alumina ceramic and carbon steel shell outside. Different from conventional elbows and bimetallic elbows, the spherical structure changes the impact angle of materials, converting surface impact into material self-grinding, greatly reducing lining wear. It solves common problems such as erosion perforation and pipe blockage of elbows in powder and slurry conveying. It can be matched with wear-resistant straight pipes, tees and ceramic patch dampers to form a complete wear-resistant conveying pipeline system.
Product Advantages
✅ Spherical flow channel design: material self-buffering, reduce direct impact on lining, far better erosion resistance than ordinary elbows and bimetallic elbows
✅ High alumina ceramic lining: alumina ceramic, hardness HRA≥85, excellent wear resistance
✅ Anti-blocking: smooth spherical inner cavity without dead corners, suitable for high-concentration powder and coarse particle slurry transportation
✅ High pressure resistance: carbon steel shell, weldable, flange connection, easy installation
✅ Corrosion resistance: acid & alkali resistant ceramic for corrosive media
✅ Long service life: 5~10 times longer than ordinary steel elbows, cut maintenance & replacement cost
✅ Customization available: angle, diameter, flange standard customizable (GB / ANSI / DIN)
· Thermal Power Plant: Fly ash, bottom ash, stone coal conveying pipeline
· Mining Industry: Concentrate slurry, tailings transportation
· Coal Washing Plant: Heavy medium, coal powder pipeline
· Metallurgy: Slag & dust conveying
· Chemical & Building Material: Powder material transportation
